สายพานเรซิน SUNLINE™สำหรับโลจิสติกส์

resin conveyor belt for logistics feed (conveyance)

The SUNLINE™ BeltsM series includes belts for mini-conveyor belts for small pulley diameters, belts with high gripping force to prevent fed (conveyance) objects from sliding even on strong inclines, and belts specialized for sliding fed (conveyance) objects on the belt. We have a wide range of fed (conveyance) belts for factories and distribution warehouses.

สายพานเรซิน SUNLINE™สำหรับโลจิสติกส์

คุณสมบัติ

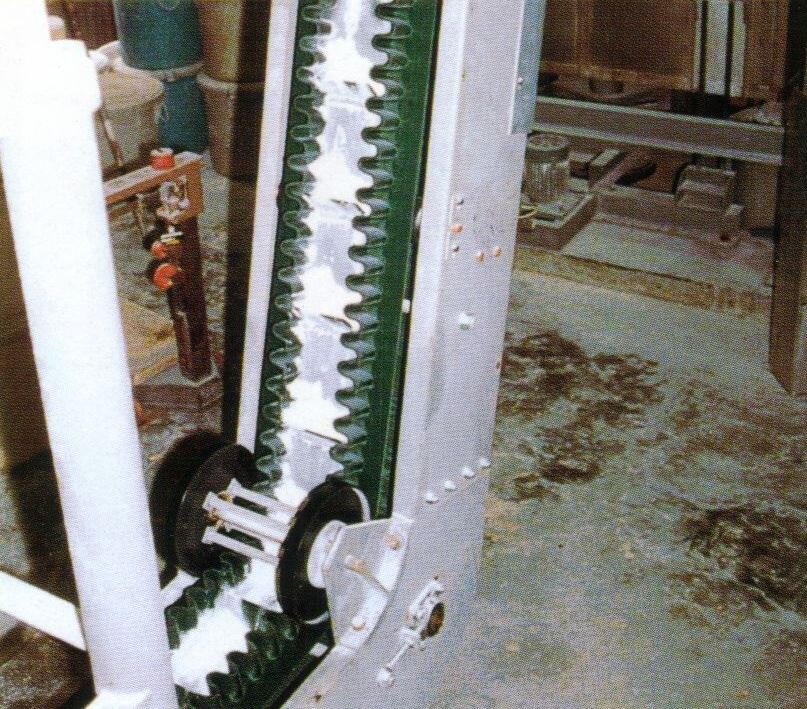

1. Inclined feed (conveyance)
The uneven shape of the belt surface (longitudinal grooves and graining) and the high coefficient of friction on the surface make it difficult for the load to slip even at an incline. (For inclination angles of 5 to 25 degrees) *For inclination angles of 20 to 90 degrees, please refer to belts for steep inclinefeed (conveyance).

2. Low noise specification
The back surface of the belt is softened to reduce rubbing noise against steel plates and other materials that support the belt.

3. Sliding FEED (conveyance)
For sliding feed (conveyance) materials on the belt, such as aligning, dispatching, or matching the quantity of feed (conveyance) materials, the polyurethane covered type with high hardness or the uncovered type with canvas surface are often used.

Product Lineup

Mr. Climber™
Conveyor belt resistant to dust and ultraviolet rays

This is the most suitable feed (conveyance) belt for inclined feed (conveyance) in logistics warehouses, etc.

*Other information is also included, such as "Mr. Pro Zipper™," which can be jointed on site simply by inserting a pin.

Click here for the special page!

List of feed (conveyance) applications

use คุณสมบัติ Product

For horizontal feed (conveyance)

Standard horizontal feed (conveyance) belts for various feed (conveyance) objects

(up to 1800 mm wide)
SL-M1, M2, M6 Series
For inclined feed (conveyance) Belt for inclined feed (conveyance) with good grip SL-MC series (Mr. Climber™)
SL-M9 and M0 Series
For slip-feed (conveyance) Slip-feed (conveyance) belts for daring to slide on sorting and conveyance lines SL-M5 Series
For Minicomputer FEED (conveyance) belts specialized for small pulley diameters, knife edges, and other pulley familiarity SL-M4 Series

If you are unsure about product selection, please use the SUNLINE™ Belt Selection tool, which allows you to narrow down the most suitable belt based on the material being conveyed and its intended use.
