Feature

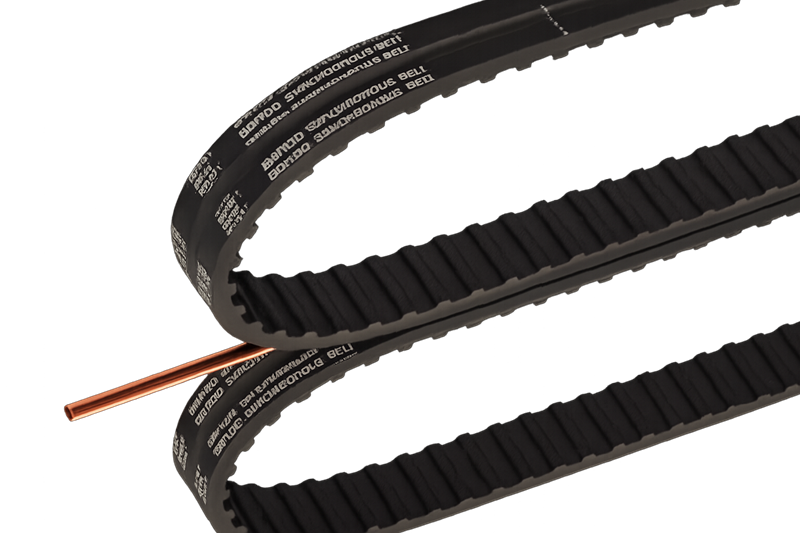

The required transport distance can be ensured by selecting the appropriate belt configuration based on the conveyed material.
The groove dimensions on the back of the belt can be selected from the belt size table according to the material being conveyed.
Structure
Belt Size Chart
 |
A | B | C | D | E | |
| 1 | 7.0 | 9.0 | 1.0 | 25.4 | 12.7 | |
| 2 | 8.0 | 9.0 | 1.0 | 25.4 | 12.7 | |
| 3 | 9.4 | 9.0 | 1.0 | 25.4 | 12.7 | |

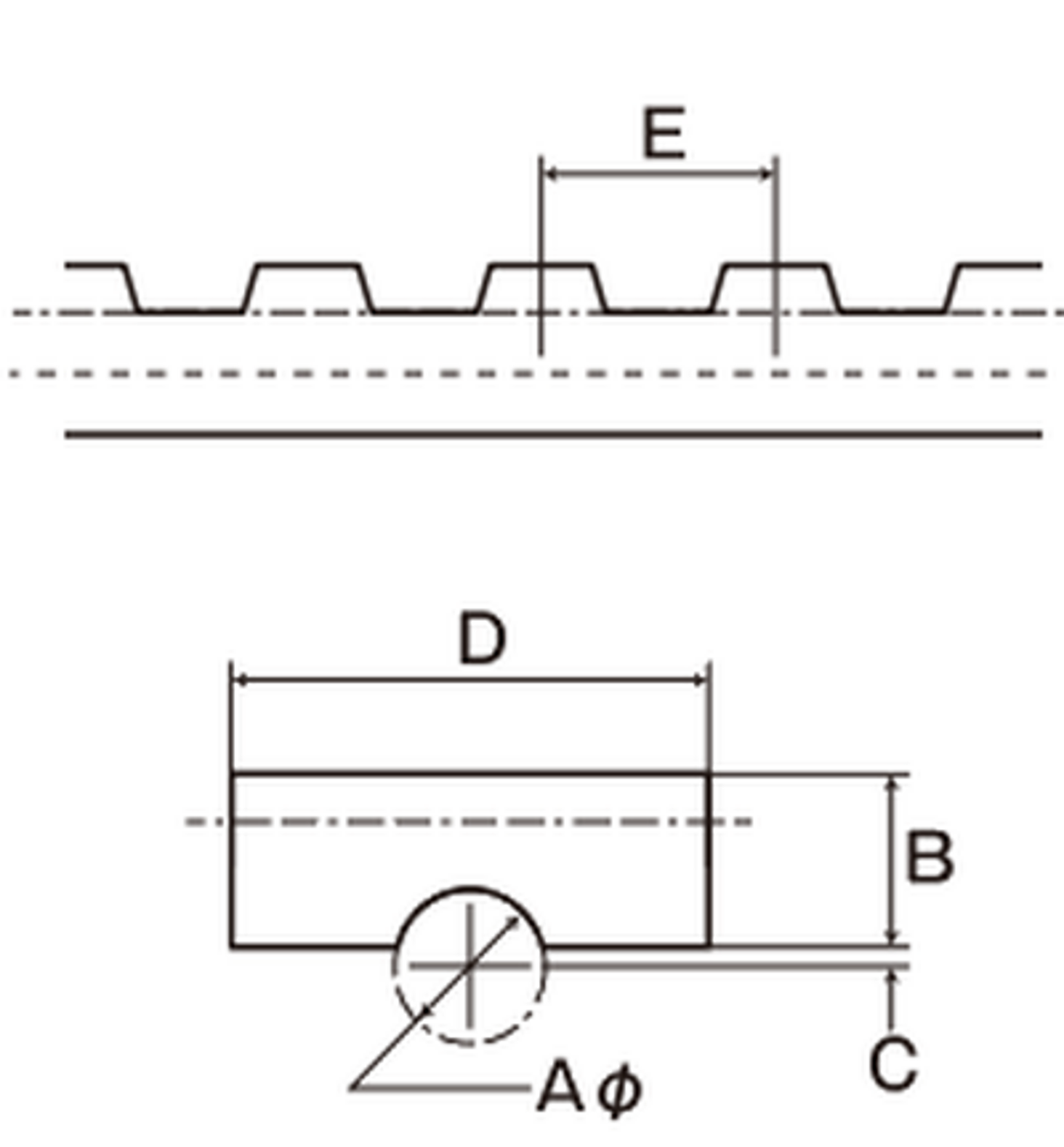

| A: Φ of the transported object B: Belt thickness C: Distance from the center of the conveyed object to the back of the belt D: Upper belt width E: Tooth pitch |
||||||
Applications and Examples

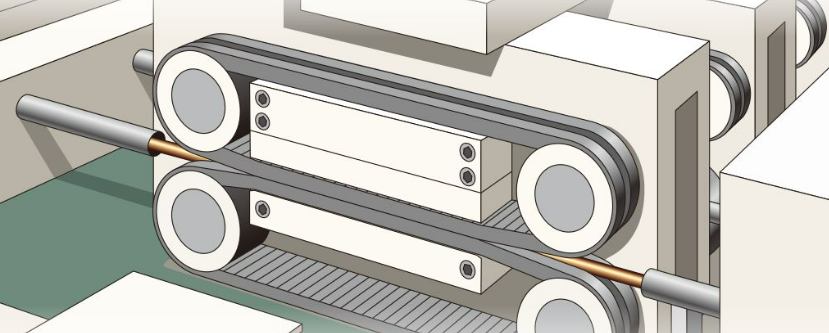

Steel Pipe Manufacturing Process
