Features
Excellent abrasion and solvent resistance.
Excellent elasticity and good adhesion to uneven printed surfaces.
The evenness of squeegee edges make sharp prints.
A wide variety of types are available according to functions (Type A: abrasion resistance, Type B, Type U, and Type S: solvent resistance).
Wide variety of types by shape (flat, sword, square, with resin plate)
Lineup
Bando Squeegees are available by function.
Type A: Abrasion resistance (polyurethane rubber)
Type B: Solvent resistance (Polyurethane rubber)
U type: Ultra solvent-resistant (polyurethane rubber)
S type: Special solvent resistance (special polymer)

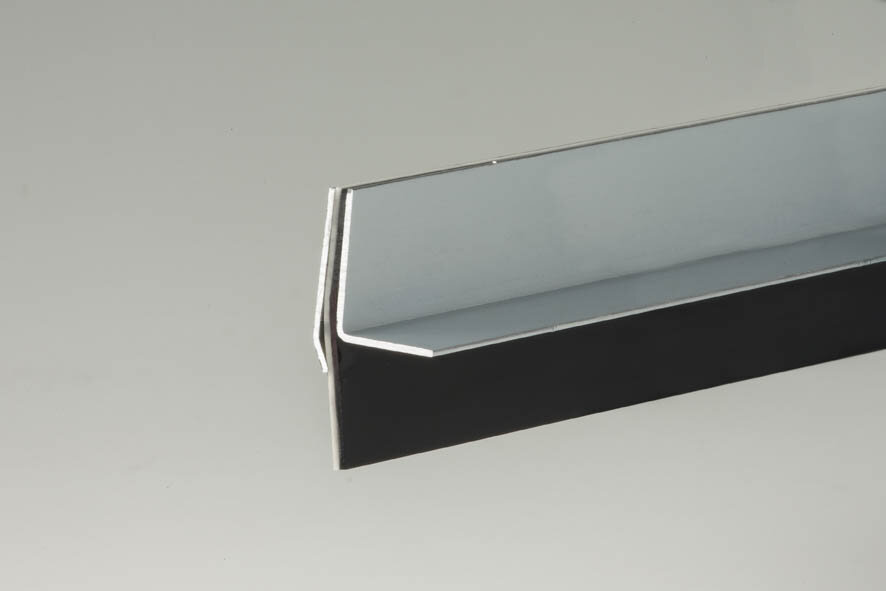

In addition, there are flat squeegees, sword squeegees, square squeegees, and squeegees with resin plates by shape.
1.Standard specifications
| type | shape | type | Size (Note 1)(mm) | hardness JIS A(°) |
||
| Thickness (t) | Width (W) | Length (L) | ||||
| flat squeegee |  |
Ａ ・ Ｂ |
3 5 6 7 9 9.5 |
30 40 45 50 |
1000 1200 2000 2400 3200 |
50(Note2) 60(Note3) 70 80 90 |
| U | 5 6 7 9 9.5 13 15 20 |
30 40 45 50 |
1000 1500 2000 |
60 65 70 75 80 85 90 |
||
| S | 6 7 9 9.5 |
40 45 50 |
750 | 60(Note3) 70 80 |
||
| sword squeegee |  |
Ａ ・ Ｂ ・ U ・ S(Note4) |
5 | 20 | 500 | 60(Note3) 70 80 90 |
| 6 | 24 | |||||
| 9 | 32 | |||||
| corner squeegee |  |
Ａ ・ Ｂ ・ U(Note5) ・ S(Note4)(Note5) |
9.6 | 9.6 | 500 1000 |
60(Note3) 70 80 90 |
| 10 | 10 | |||||
(Note 1) Any combination of size thickness, width, and length can be used for those not underlined.
(Note 2) Only B type is available for 50° hardness.
(Note 3) For Type B hardness 60°, the median hardness is 65°.
(Note 4) S-type hardness 90° sword squeegee and square squeegee are not available.
(Note 5) U type and S type are 9.5 m2. 6 x 9. 6 only.
| type | shape | A-B(mm) | type | Size (Note 1)(mm) | Hardness JIS A(°) | |||
| Thickness (t) | Width (W) | Length (L) | A | B | ||||
| Super Solvent Resistance 2 Layer Skeezy |
 |
3.5-6 6-3. 5 |
UC | 9.5 | 50 | 2400 2000 1200 1000 |
60-80 60-90 70-90 |
|
| Super Solvent Resistance squeegee |
 |
long vowel mark (usually only used in katakana) | UC | 3 5 6 7 9 9.5 |
30 40 45 50 |
3200 2400 2000 1200 1000 |
60 70 80 90 |
|
2. Special Specifications
We also manufacture products other than standard products. Please contact us for more information.
Storage Precautions
Store in a well-ventilated place out of direct sunlight.
Type A squeegee may turn black due to sunlight, etc., but the material will not deteriorate.
■Precautions for use
If stored in its rolled form, it will become frizzy, so please stretch it out and store it.
● Regarding the hardness of squeegee, if the squeegee is left at low temperature for a long time, it may not return immediately even if it is left at room temperature.
At that time, heat treatment should be performed under the following conditions.
In case of 50-60°C oven: 60-120 min.
In the case of an oven at 100-110℃ 30 - 60 min.
