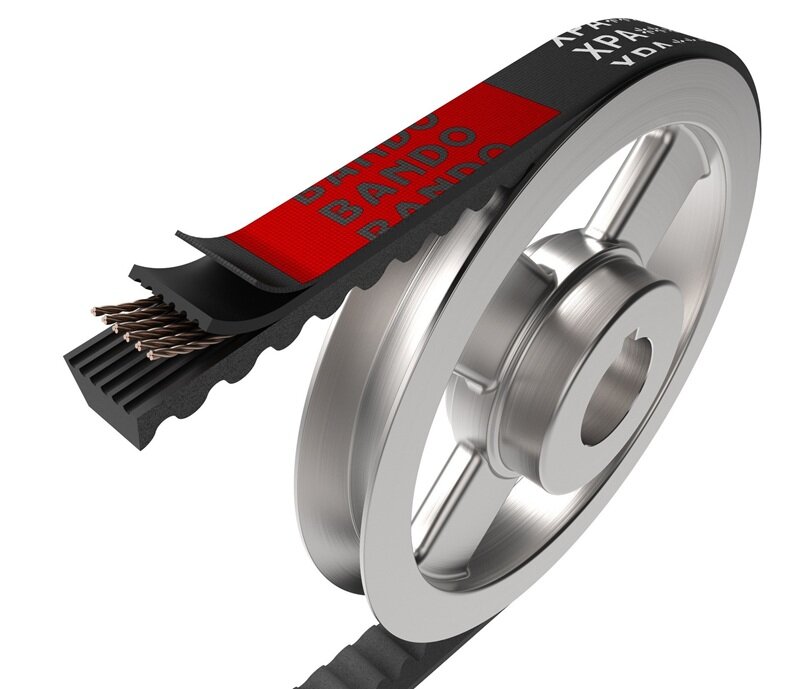

Features
- Provides 20–30% higher transmission capacity than conventional narrow V-belts through a cogged design
- Suitable for applications with small pulley diameters and high-speed operation
- Enables space-saving drive designs by reducing the number of belts required
Structure
1. Outer fabric: Chloroprene
2. Core wire: Low-stretch polyester
3. Adhesive rubber: Chloroprene
4. Lower rubber: Chloroprene
Dimensions and Names
Example: XPZ 1000
XPZ: Belt type
1000: Belt pitch length
 |
Top width (mm) | Thickness (mm) | Angle (°) | ||
| XPZ | 9.7 | 8.0 | 38 | ||
| XPA | 12.7 | 10.0 | 38 | ||
| XPB | 16.3 | 13.0 | 38 |
